Brands JuggleGear
Product Code:Aerial Rig MK3 - 20ft 16ft or 12ft
Availability:In Stock

Limited time offer

$2,595.00 $2,795.00

Available Options

Were happy to help. If you have an issue with your product please contact us.

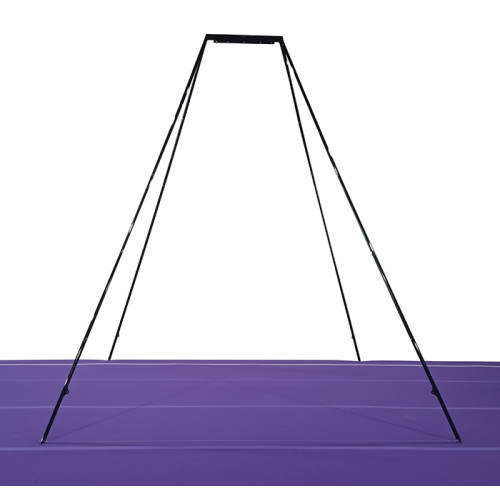

This Circus Aerial Rig can be set up for the following working heights: 20ft, 16ft, or 12ft. One of the most flexible and easy to use aerial rigs on the market, we are very proud of this unit.

Perfect for aerial hoop , trapeze, rope and aerial tissue. The rigs feet are rubber based to protect your floors. The MK3 rig is suitable for tissue, trapeze or aerial hoop. Made out of Chromoly steel, which is far stronger than aluminum, but still lightweight. It is quite easy for two people to assemble in 10 min. With the longest piece being 145 cm (57") it is quite portable.

The new MK3 rig has 5 anchor points along the top bar, with 4 additional anchor points on the legs. The anchor points work perfectly with our optional pulley kit.

Constructed from high quality materials, we have tested it in house for usability and had it tested by an external facility for strength. All joints have been engineered to ensure exact fits and strength. Our robot welds ensure consistency and accuracy during manufacturing.

Please consider the rig's dimensions carefully as, if you are using this rig indoors, you will require a reasonably large room with high ceilings. The rig stands at 610cm | 20ft tall see the features list for more details. With a large foot print this rig is great on all kinds of surfaces, even grass. The rig surface has been powder coated with a tough epoxy, which looks great and protects from weather.

Collapsible sections (4 legs x 5 parts per leg)
Materials: chromoly Steel (high carbon steel)
Unit Weight: 72kg / 160lbs
Height: 610cm | 20ft with Foot print of 525cm x 525cm | 18ft x 18ft
Height: 487cm | 16ft with Foot print of 442cm x 442cm | 14.5ft x 14.5ft
Height: 365cm | 12ft with Foot print of 365cm x 365cm | 12ft x 12ft
Min breaking load: 2834 kg | 6250 lbs | 27.7 KN
WLL: 566 kg | 1250 lbs | 5.5 kn
*** note WLL 5:1 ratio
Additional Cables for 12ft, 16ft, 20ft configuration included.

Assembles in under 10 mins,  no tools needed.

Pulley System: 85ft x Rope: 12.5mm x  Double Braid Nylon rope - breaking strength 9500 lbs, 1 x double pulley, 3x single pulley, 6 x carabiners,

The rig is fully strength tested and certificate of conformity is available.

Shipping: Our shipping is great and this product can be sent using our regular Flat rate shipping service in Canada, USA, and other select countries. Contact us if you are in a country without a flat rate shipping rate, we will be happy to source the best shipping rates we can.

Note: Aerial hoop or other apparatus sold separately.
